Bar Bending Machine Price
Bar Bending Machine Price Specification
- Drive Motor
- Induction Motor
- Product Type
- Rebar Processing Equipment
- General Use
- Bending Rebars and Steel Bars
- Material
- Alloy Steel, Mild Steel
- Type
- Automatic Bar Bending Machine
- Capacity
- Upto 32 mm (TMT Bar)
- Weight (kg)
- 320 kg
- Computerized
- No
- Automatic
- Yes
- Cutting Speed
- 5-15 sec/bar
- Cutting Thickness
- Upto 40 mm
- Cutting Function
- Bar Bending Function Only
- Cooling System
- Air Cooled
- Drive Type
- Electric Motor Driven
- Voltage
- 415 V
- Dimension (L*W*H)
- 950 x 850 x 900 mm
- Feature
- Portable, Heavy Duty, Low Noise, Efficient Operation
- Color
- Blue & Yellow
- Motor
- 5 HP, Three Phase
- Mechanical Precision
- 1 Degree
- Cutting Method
- Rotary Bending Disc
- Control System
- Push Button & Manual Lever
- Cutting Material
- TMT Bar, Steel Bar
- Cutting Area
- 40 mm Diameter Bar
- Operation Mode
- Foot Pedal & Manual Switch
- Input Frequency
- 50 Hz
- Power Consumption
- 3.7 kW
- Lubrication
- Grease Cup Lubrication System
- Main Shaft Speed
- 7-10 rpm
- Noise Level
- <75 dB
- Rotation Angle
- 0-180 Degrees Adjustable
- Protection Type
- Overload and Short Circuit Protection
- Suitable for
- Construction Site, Building Projects
Bar Bending Machine Price Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 1 Days
About Bar Bending Machine Price

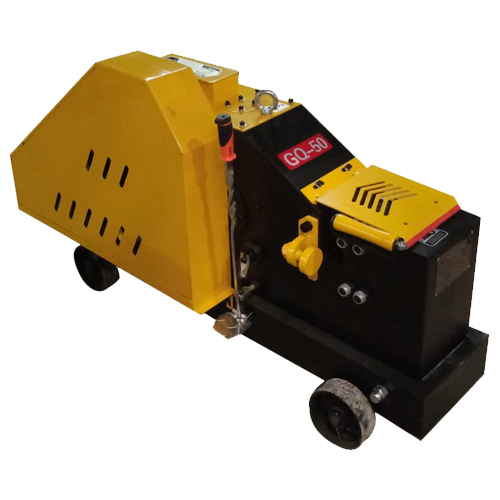

About GQ-50 Bar Cutting Machine
The GQ-50 Bar Cutting Machine is an efficient and reliable tool for industrial use. Made of sturdy steel, this machine is built to last and can handle a variety of cutting tasks. Its high efficiency and low energy consumption make it an excellent addition to any workspace. The machine is also fully automatic, which means it can be programmed to cut bars to specific lengths with ease. Despite its automatic capabilities, the machine also has a manual control system, which ensures precision and accuracy when cutting. With a warranty included, customers can trust that this bar cutting machine will meet their needs for years to come.
FAQs of GQ-50 Bar Cutting Machine:
Q: Is this machine suitable for heavy-duty cutting tasks?
A: Yes, the GQ-50 Bar Cutting Machine is made of steel and is built to handle industrial-level cutting tasks.Q: Can this machine cut bars to specific lengths?
A: Yes, the machine is fully automatic and can be programmed to cut bars to specific lengths.Q: Does this machine have a manual control system?
A: Yes, the machine has a manual control system, which ensures precision and accuracy when cutting.Q: Is this machine energy-efficient?
A: Yes, the GQ-50 Bar Cutting Machine is designed to have low energy consumption, making it an excellent addition to any workspace.Q: Does this machine come with a warranty?
A: Yes, a warranty is included with the GQ-50 Bar Cutting Machine, ensuring that customers can trust in its reliability and longevity.Advanced Precision and Safety Features
Engineered for accuracy, the Automatic Bar Bending Machine offers adjustable rotation angles from 0 to 180 degrees and a reliable rotary bending disc mechanism. Enhanced safety comes built-in with overload and short circuit protection, ensuring peace of mind in demanding construction environments.
Heavy-Duty and Versatile
Designed for portability without sacrificing strength, this machine can handle up to 32 mm TMT bars and 40 mm diameter steel bars in just 5-15 seconds per bar. Its compact dimensions, air-cooled system, and grease cup lubrication provide smooth and efficient operations even under continuous use.
User-Friendly Operation
Users benefit from simple controls via push buttons, manual levers, and a convenient foot pedal. Whether you are assisting with large-scale construction projects or smaller building works, this machine's straightforward operation speeds up workflow and reduces labor intensity.
FAQ's of Bar Bending Machine Price:
Q: How does the bar bending machine ensure safety during operation?
A: The machine incorporates overload and short circuit protection mechanisms, safeguarding both operators and equipment. This built-in feature automatically shuts down the machine in case of electrical or mechanical strain, minimizing accident and equipment damage risks.Q: What types of bars can this machine bend and what is the maximum capacity?
A: It is suitable for bending TMT bars and steel bars (alloy or mild steel) with a cutting area up to 40 mm diameter, and has an operational capacity of up to 32 mm TMT bar, making it ideal for most construction projects.Q: When should grease cup lubrication be applied to the machine?
A: Regular lubrication with the grease cup system is recommended as part of routine maintenance, either daily or after extended use, to ensure smooth operation and prolong the lifespan of internal mechanical parts.Q: Where is this bar bending machine typically used?
A: Primarily designed for construction sites and building projects, the machine's portability and heavy-duty build make it suitable for both large infrastructure works and smaller construction needs across India.Q: What is the process to operate the bar bending machine?
A: Operation involves selecting the required bend angle (0-180 degrees), securely positioning the bar, and activating the machine using either the foot pedal or manual switch, all while monitoring progress via the push button and lever controls.Q: How does the machine's design improve work efficiency and reduce noise?
A: Engineering features such as a low-noise electric induction motor (<75 dB), rapid bar bending speeds (5-15 sec/bar), and portable, ergonomic construction collectively ensure faster project completion with minimal disturbance.Tell us about your requirement
