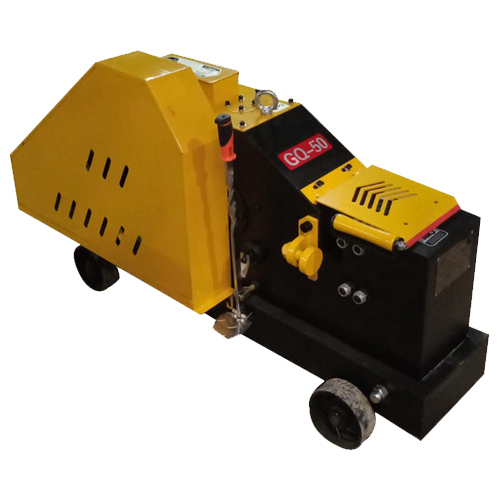

Bar Cutting Machine Supplier

Bar Cutting Machine Supplier Specification

Drive Motor
Copper Wound Electric Motor

Product Type
Rebar/Steel Bar Cutter

General Use
Construction Bar Cutting

Material
Mild Steel Body

Type
Bar Cutting Machine

Capacity
32 mm Bar Dia.

Weight (kg)
460 kg (Approx)

Computerized
No

Automatic
Semi-Automatic

Cutting Speed
36 Cuts/min

Cutting Thickness
Up to 32 mm

Cutting Function
Manual/Automatic Bar Cutting

Cooling System
Air Cooled

Drive Type
Electric Motor Driven

Voltage
415 V, 3 Phase

Dimension (L*W*H)
1380 x 530 x 900 mm

Feature
Durable structure, High efficiency, Easy operation, Low maintenance

Color
Yellow and Black

Motor
5 HP (3.7 kW)

Mechanical Precision
1 mm

Cutting Method
Shearing

Control System
Manual / Mechanical

Cutting Material
Steel/Rebar

Cutting Area
32 mm (Max Bar Diameter)

Safety Features
Overload Protection, Safety Guard Included

Operating Noise Level
Below 75 dB

Cutting Blade Material
Alloy Steel

Suitable Bars
TMT, CTD, Plain Bars

Shearing Angle
7-9

Portable
Yes, with wheels

Lubrication System
Grease/Oil

Frequency
50 Hz

Application Area
Civil Construction, Infrastructure Projects

About Bar Cutting Machine Supplier

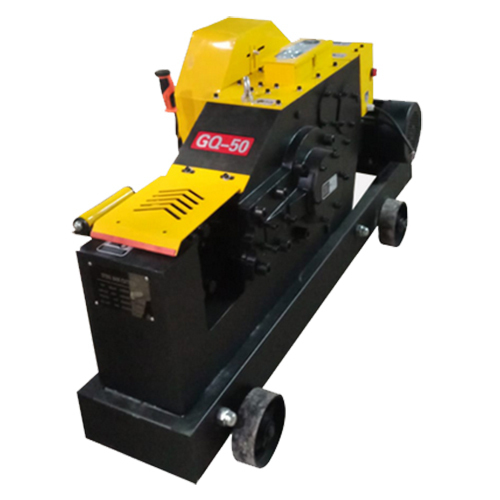

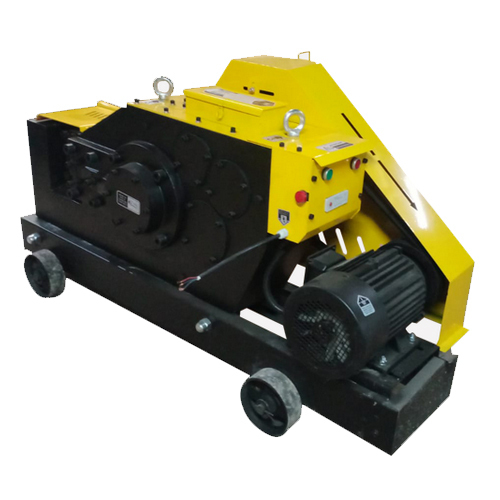

About GQ-50 Bar Cutting Machine

The Bar Cutting Machine is an efficient and reliable tool for industrial use. Made of sturdy steel, this machine is built to last and can handle a variety of cutting tasks. Its high efficiency and low energy consumption make it an excellent addition to any workspace. The machine is also fully automatic, which means it can be programmed to cut bars to specific lengths with ease. Despite its automatic capabilities, the machine also has a manual control system, which ensures precision and accuracy when cutting. With a warranty included, customers can trust that this bar cutting machine will meet their needs for years to come.

FAQs of Bar Cutting Machine:

Q: Is this machine suitable for heavy-duty cutting tasks?

A: Yes, the Bar Cutting Machine is made of steel and is built to handle industrial-level cutting tasks.

Q: Can this machine cut bars to specific lengths?

A: Yes, the machine is fully automatic and can be programmed to cut bars to specific lengths.

Q: Does this machine have a manual control system?

A: Yes, the machine has a manual control system, which ensures precision and accuracy when cutting.

Q: Is this machine energy-efficient?

A: Yes, the Bar Cutting Machine is designed to have low energy consumption, making it an excellent addition to any workspace.

Q: Does this machine come with a warranty?

A: Yes, a warranty is included with the Bar Cutting Machine, ensuring that customers can trust in its reliability and longevity.

Efficient and Safe Bar Cutting

Experience high efficiency and reliability with our semi-automatic bar cutting machine. The system boasts a strong alloy steel cutting blade, capable of handling up to 32 mm rebar or steel bars. Overload protection, safety guards, and a durable structure add layers of operational safety while maintaining smooth functionality. This machine is perfect for a wide range of civil and infrastructure projects requiring precise cutting.

User-Friendly and Portable

Designed with portability in mind, our machine features wheels for easy movement around job sites. Its manual and automatic cutting functions allow operators to choose according to their workflow needs. Simple controls and an ergonomic structure make operation straightforward, even for users with minimal training.

Low Maintenance and High Performance

Thanks to its air-cooled design, grease/oil lubrication system, and copper wound electric motor, this bar cutting machine is engineered for low maintenance demands. Enjoy reliable performance, minimized downtime, and longevity, ensuring your construction schedules remain on track.

FAQ's of Bar Cutting Machine Supplier:

Q: How do I operate the Bar Cutting Machine safely at construction sites?

A: To operate the machine safely, ensure the safety guard is in place and activate the overload protection system if available. Use manual or automatic operation modes as needed. Always wear appropriate personal protective equipment and follow the manufacturer's guidelines for setup and operation.

Q: What types of bars can this machine cut, and what is the maximum diameter?

A: This machine efficiently cuts TMT, CTD, and plain bars with a maximum bar diameter of 32 mm. It is designed for use with steel/rebar in construction and infrastructure projects.

Q: When is routine maintenance required, and how do I perform it?

A: Routine maintenance, such as checking the lubrication system (grease or oil), should be performed regularly-ideally before each major operation or weekly, depending on machine usage. Inspect the cutting blade and safety mechanisms for wear and ensure all moving parts are lubricated and free of obstructions.

Q: Where can this bar cutting machine be utilized effectively?

A: This machine is suitable for civil construction sites, infrastructure projects, and other environments where precise steel bar cutting is needed. Its portability and low noise operation allow use in both large and smaller work areas.

Q: What is the cutting process, and how accurate is it?

A: The bar cutting process uses a shearing method, powered by a 5 HP electric motor. The machine achieves a mechanical precision of 1 mm, delivering consistent and clean cuts at a rate of 36 cuts per minute.

Q: What are the benefits of using this particular bar cutting machine over others?

A: Key benefits include high efficiency, easy portability with built-in wheels, low noise operation below 75 dB, robust safety features, low maintenance requirements, and precise cutting performance. These features combine to ensure safer, faster, and more reliable bar cutting on your construction site.
